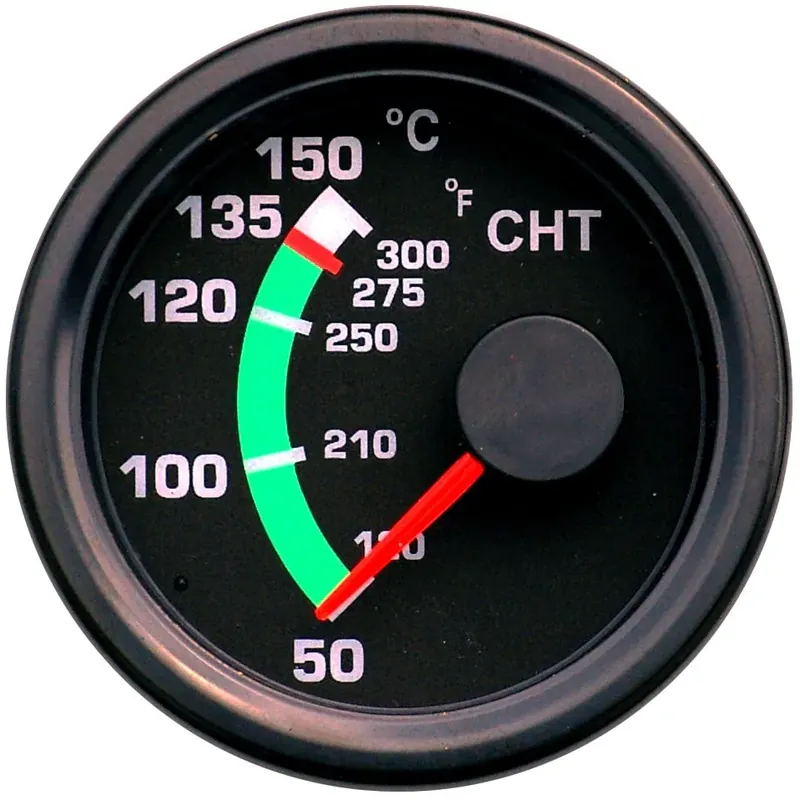

CHT Temperaturanzeige 150°C Ø 52MM, TEMPERATURE GAUGE 150°C Ø 52MM
NO: IH71.2B35.2202
FRONTRING FLAT; BLACK
ESCUTCHEON DULL BLACK BACKLIGHT
GLASS FLAT
POINTER RED, HUB BLACK PLASTIC NIGHT DESIGN
DIAL FACE BACKGROUND DULL BLACK RAL 9005, PRINTING
WHITE RAL 9010, RED RAL2002, GREEN RAL 6018,
NIGHT DESIGN ILLUMINATED
BODY PLASTIC WHITE
INSTALLATION FIXATION RING
OPERATING TEMP. / VOLT – 25°C TO +65°C / 10,5V – 15V dc
ENGINE 912A, 912F, 912UL, 912S, 912ULS, 914F, 914UL
ILLUMINATION LED WHITE, DIMMABLE
PROTECTION BODY IP54 (IEC 60529) ELCTR. CONNECTION IP00
WEIGHT APPROX 85gr.
SENSOR
Order NO. TC10.0000.0902 Temperaturgeber 50°-150° NTC M10x1,5 T 6,3, 150°C Ø 52MM, TEMPERATURE GAUGE 150°C Ø 52MM
