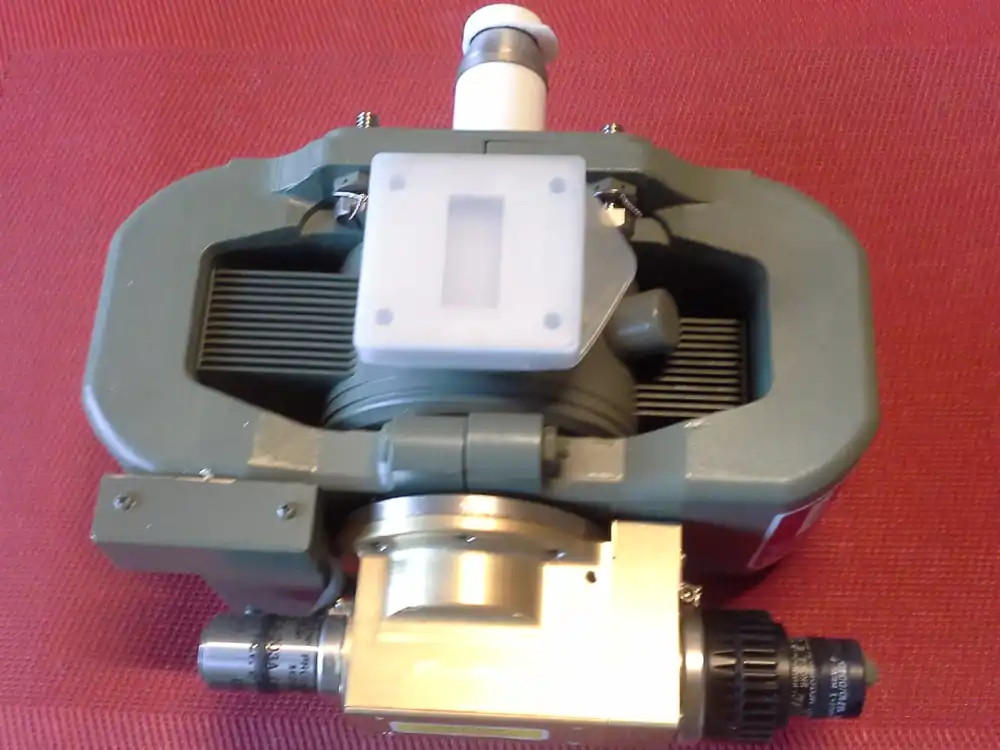

Magnetron, CPI, SFD-354H
Vers.Nr.5960-01-003-4309
Magnetron SFD 354H, SFD-345H von Varian, USA, 65 kW, X-Band Frequency Agile Magnetron, ELECTRON TUBE .
Technische Daten Magnetron Varian SFD 345H, SFD-345H:
* X-Band Frequency Agile Magnetron
* NSN: 5960-01-113-4309 , 5960011134309
* Part Alternates: SFD354H, SFD-354H, 352250020578, 01-113-4309, 011134309
* Hersteller: Varian, USA
* Frequenzy: 8,86 – 9,24 GHz
* Peak Power: 200 kW
* Duty Cycle: .001
* Cooling: Air
* Anode Voltage: 22 (kV)
* Anode Current: 27 (A)
* Tuning: 200 MHz in 40ms
