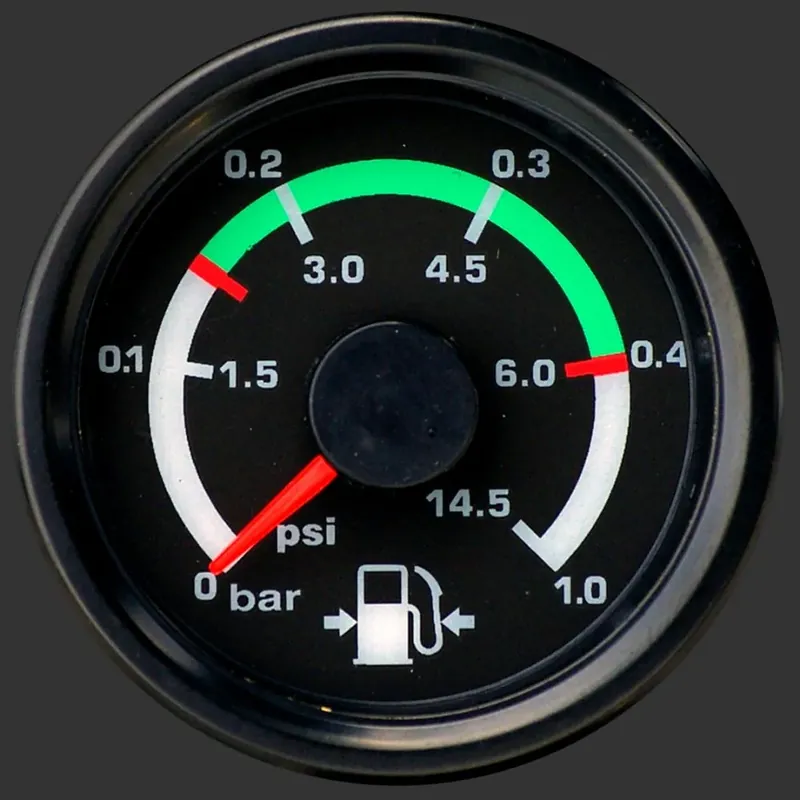

Benzindruckanzeige 1bar Ø52mm, FUEL PRESSURE GAUGE 1bar Ø52mm
- NO: IE71.2B35.2201
- FRONTRING FLAT, BLACK
- ESCUTCHEON DULL BLACK BACKLIGHT
- GLASS FLAT
- POINTER RED, HUB BLACK, NIGHT DESIGN
- DIAL FACE BACKGROUND DULL BLACK RAL 9005, PRINTING
- WHITE RAL 9010, RED RAL2002, GREEN RAL 6018,
- NIGHT DESIGN ILLUMINATED
- BODY PLASTIC WHITE
- INSTALLATION FIXATION RING
- OPERATING TEMP. / VOLT – 25°C TO +65°C / 10,5V – 15V dc
- ENGINE 912A, 912F, 912UL, 912S, 912ULS, 914F, 914UL
- P/N ZUBEHÖR / Drucksensor 1 bar/ TEMPERATURE
- ILLUMINATION LED WHITE, DIMMABLE
- PROTECTION BODY IP54 (IEC 60529) ELCTR. CONNECTION IP00
